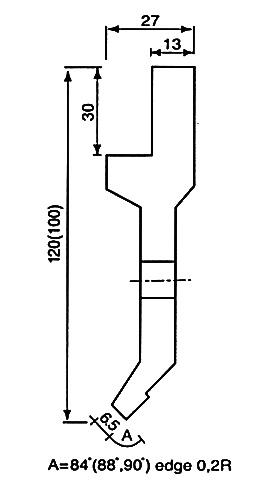

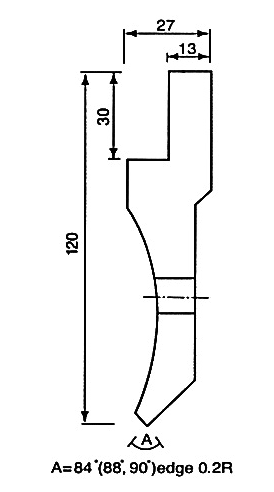

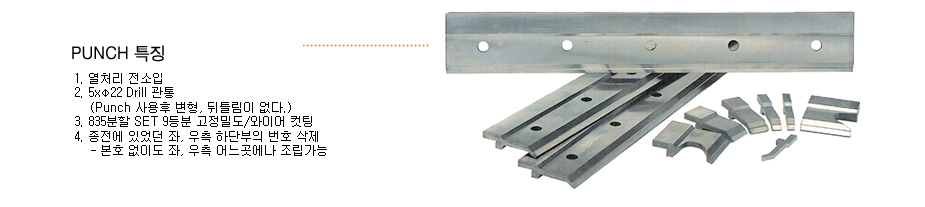

 세부도면 (Spec Drawing) |

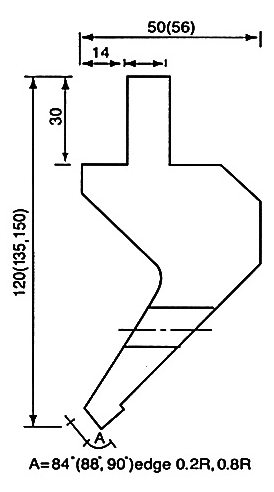

| TY - A111 |
|
TY - A112 |
|
TY - A113 |
|
TY - A114 |
|
TY - A115 |
|
TY - A116 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
 |
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|
| TY - A1160 |
|
TY - A117 |
|
TY - A118 |
|
TY - A119 |
|
TY - A120 |
|
TY - A505 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|

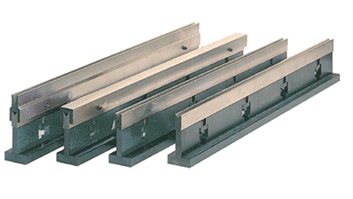

| SECTIONALIZED TYPE |
|
|
|
|
 |
|
|
|
|
|
| |
| |
SPECIFICATION |
 |
| MODEL |
A |
B |
C |
D |
| TY-V111 |
16 |
35 |
12 |
86˚(88˚90˚) |
| TY-V112 |
14 |
35 |
10 |
86˚(88˚90˚) |
| TY-V113 |
14 |
38 |
8 |
32˚(30˚) |
| TY-V123 |
17 |
38 |
12 |
32˚(30˚) |
| TY-V123S |
30 |
60 |
12 |
32˚(30˚) |
| TY-V114 |
32 |
35 |
|
0˚ |
| TY-V115 |
12 |
35 |
8 |
86˚(88˚90˚) |
| TY-V116 |
16 |
35 |
12 |
86˚(88˚90˚) |
| TY-V117 |
22 |
35 |
18 |
86˚(88˚90˚) |
| TY-V118 |
29 |
40 |
25 |
86˚(88˚90˚) |
| TY-V119 |
19 |
35 |
15 |
86˚(88˚90˚) |
| TY-V120 |
24 |
35 |
20 |
86˚(88˚90˚) |
| TY-V122 |
35 |
40 |
28 |
86˚(88˚90˚) |
|
|
| |
| 세부도면 (Spec Drawing) |
| |
|

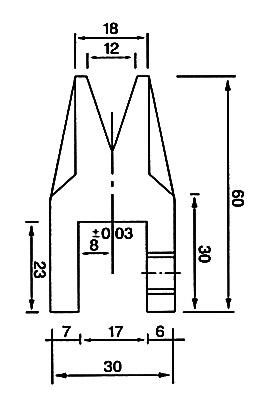

TY - V123S |
|
TY - V114 |
|

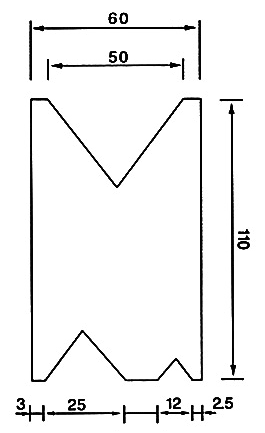

TY - T - 104 |
|

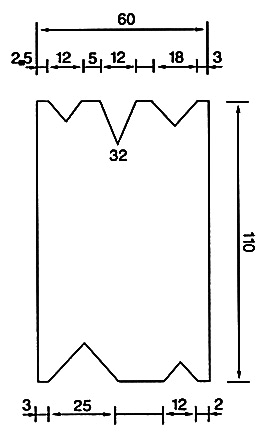

TY - T - 204 |
|

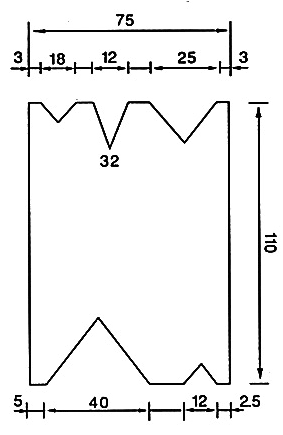

TY - T - 304 |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
|
|
|
|

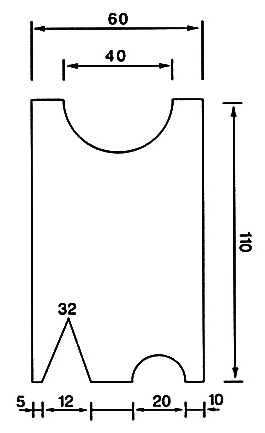

| TY - T - 704 |
|

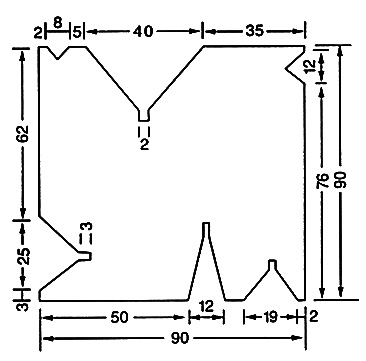

TY - T - 601 |
|

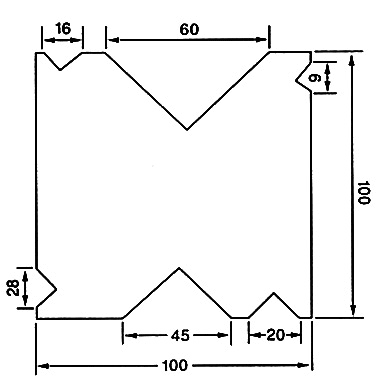

TY - T - 602 |
|
|
|
|
|
|
 |
|
 |
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| |

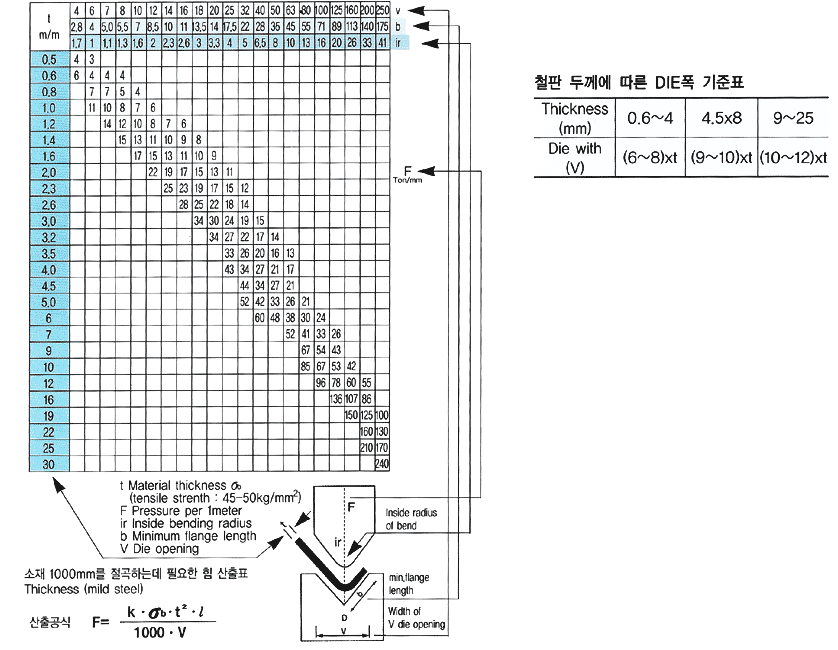

| 절곡압력산출표 (Bending Force Chart) |
 |
| |
